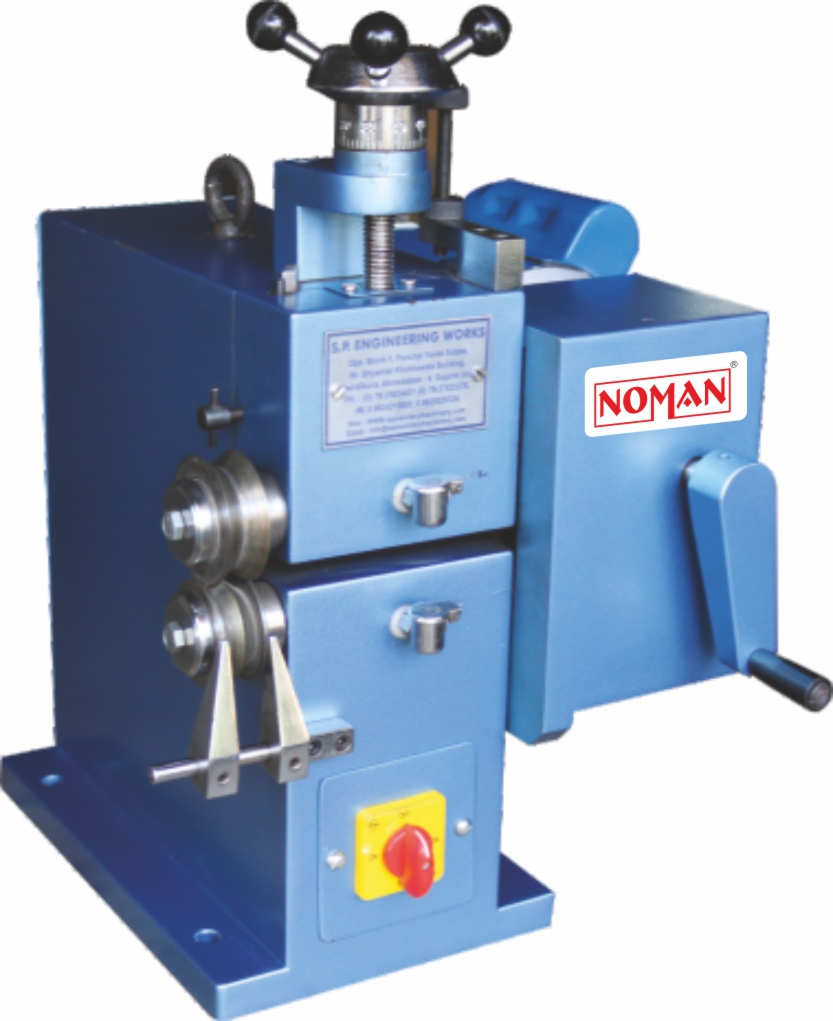

Bangle and Ring Grooving Machine
NJM125
| Dimension / Model | GV / M |
|---|---|
| Operating Mode | Motorized / Manual |
| Diameter Min./Max. Size | 1.5 to 3 Inch |
| Maximum Width | 25 mm |
| Spindle Motor | 0.5 HP (0.37 kW – 1 Ph / 2800 rpm) |
| Dies Roller Speed | Up to 45 rpm |
| Installed Power | 220/240 VAC – 1 Ph – 50 Hz |
| Total Required Ele. Load | 0.75 kVA |
| Net Weight | 59 / 95 kg (Approx.) |
| Dimensions (L×W×H) | 17×16×19 inch |
Bangle and Ring Profiling (Grooving) machine designed specifically for accurately profiling bangles and rings in different shapes.
This versatile machine combines precision and ease of use, making it an essential tool for jewellers and manufacturers alike.
